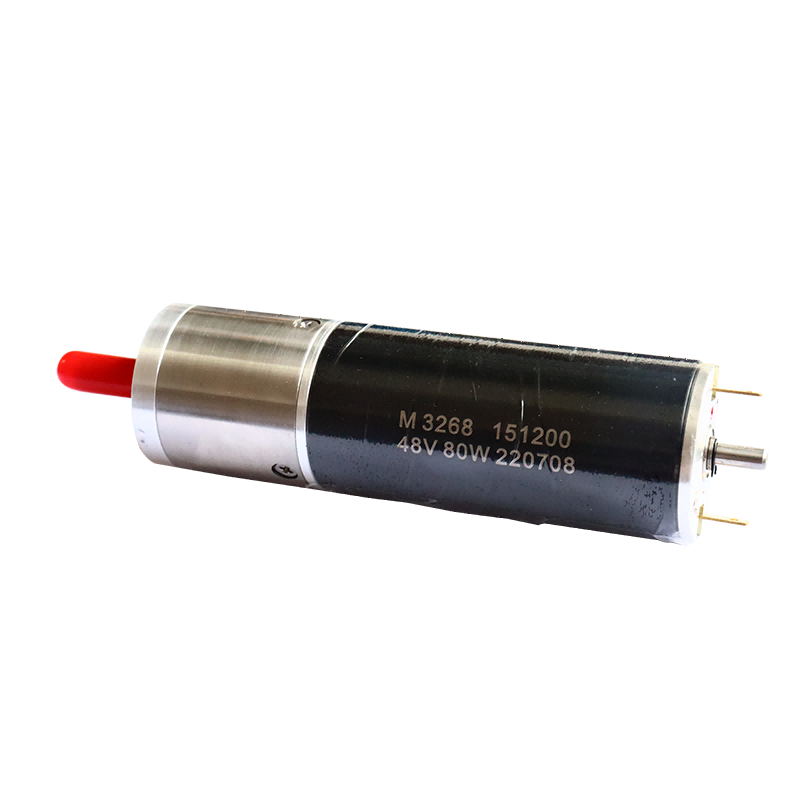

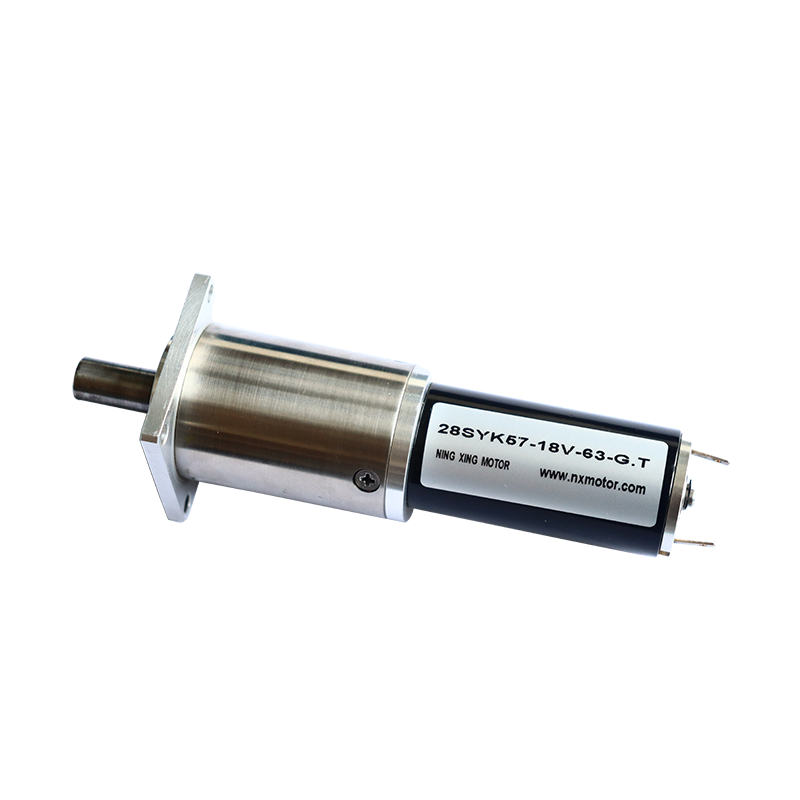

Planetgirhode 32mm

Ningbo Ruixing Motor Co.,LTD is China manufacturer & supplier who mainly produces Planetary Gearhead 32mm with many years of experience. Hope to build business relationship with you. Planetary gearheads offer several advantages, such as high torque output, low backlash, and high efficiency. They are suitable for various applications, including robotics, medical devices, automotive and aerospace components, precision machinery, and camera gimbals.

Teknisk parameter
Diameter girkasse		mm		32
Lager av aksel		valgfri/-		Kulelager
Radiell klaring		mm		≤0,1
Aksial klaring		mm		≤0,2
Tillatelse Inngangshastighet		rpm		≤10 000
Anbefalt temperaturområde		℃		-20 til +125
Tillatelse Installasjon Force		N		≤120
Aksial belastning		N		≤80
Radiell belastning		N		≤100
Typiske applikasjoner
Medisinsk enhet		Digitale produkter		UAV		Industriell automasjon
produktinformasjon
1		Scene	1	2	3		4		5
2		Antall ordre	1232001	1232008	1232036	1232071	1232137	1232202	1232389	1232540
3		Forhold	3.11	9.68	30.11	71.68	159.42	297.66	693.79	1428.77
4		Antall ordre	1232004	1232017	1232047	1232077	1232146	1232221	1232402	1232600
5		Forhold	4.00	14.93	46.46	80.14	178.23	344.06	765.21	1846.41
6		Antall ordre	1232005	1232022	1232051	1232085	1232170	1232244	1232423	1232663
7		Forhold	4.80	19.20	51.24	92.16	223.00	412.16	855.52	2548.04
8		Antall ordre		1232027	1232061	1232095	1232188	1232270	1232454	1232698
9		Forhold		23.04	62.01	110.59	266.24	530.84	988.89	3174.00
1		L1（mm)	31.6	37.9	44.2		50.5		56.8
2		L(mm)	31.6	37.9	44.2		50.5		56.8
3		Dreiemoment (Nm)	1.0	1.5	2.5		3		5
4		Stall dreiemoment(Nm)	2.0	3.0	5		6		7.5
5		Maks effektivitet (%)	90	81	73		65		59
6		Vekt (g)	125	147	169		191		213
7		Tilbakeslag uten belastning (°)	1	1.5	1.5		2		2
